Execute BPEL Process using ADF JSF Pages

Steps:

1.Get the WSDL URL

2.Build the JSF Page

3.Run the .jspx page

Get the WSDL URL:

Start your SOA Suite

Open BPEL Console using http://localhost:8888/BPELConsole

Click on the DatabaseAdapterTutorial that we developed in previous tutorial. You can download the code from here.

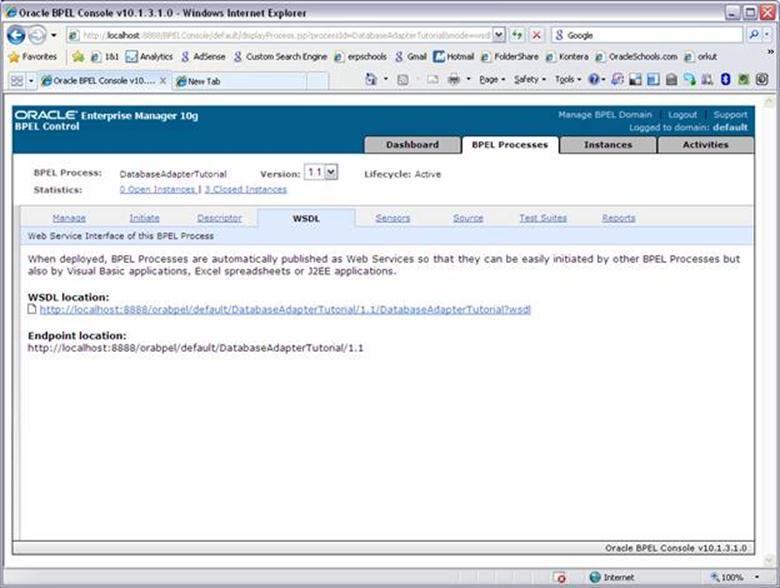

Click on WSDL tab

Click on the URL listed as WSDL Location

Copy the URL from the above page and save it somewhere.

http://localhost:8888/orabpel/default/DatabaseAdapterTutorial/1.1/DatabaseAdapterTutorial?wsdl

BUILD JSF Page:

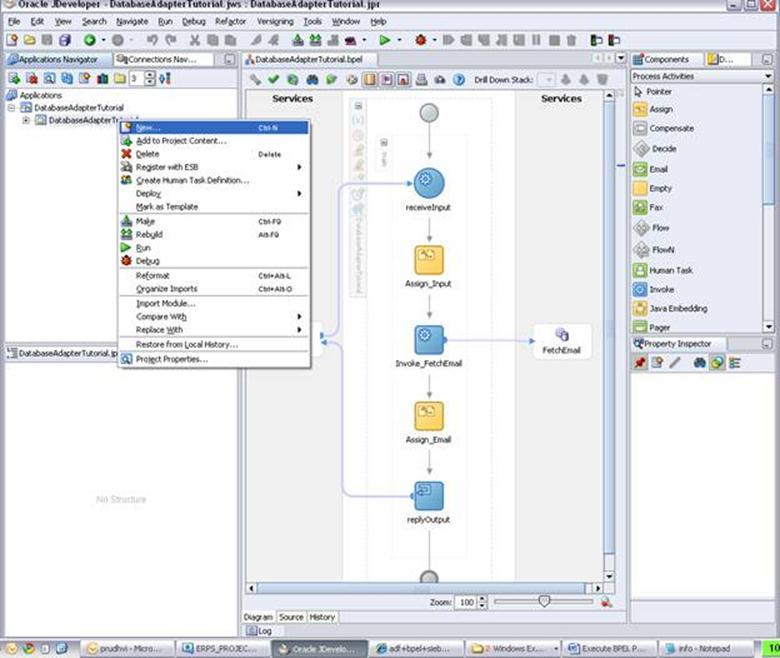

Right click on the page and select ‘New’

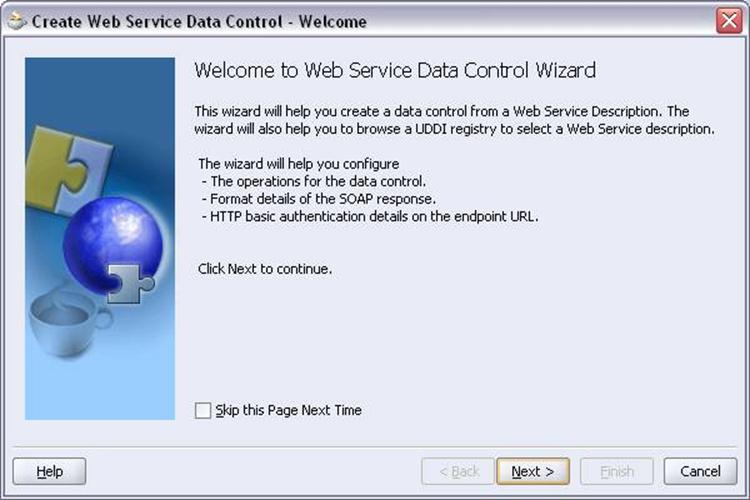

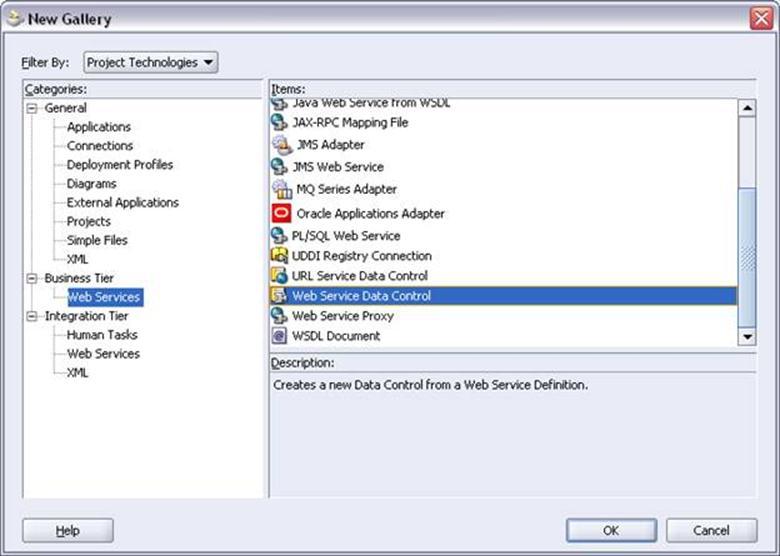

Select Web Services and Web Service Data control

Click OK

Click Next

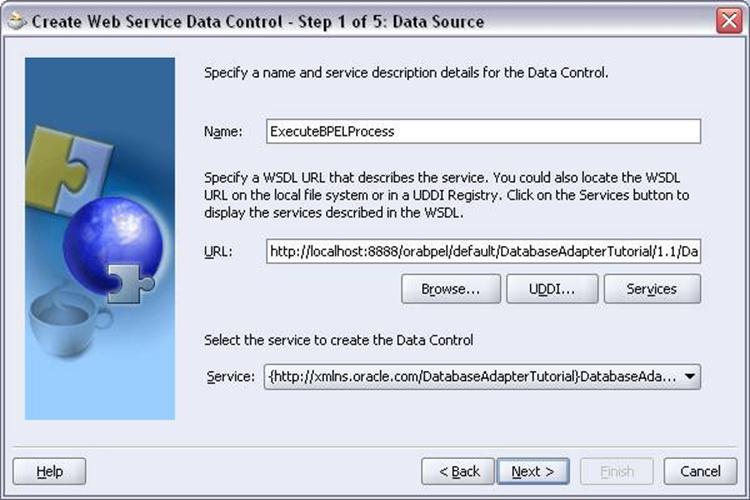

Enter the name as you wish

URL: Copy the URL that we copied to notepad in the previous step

Service: It will be populated automatically if your WSDL URL is valid

Click Next

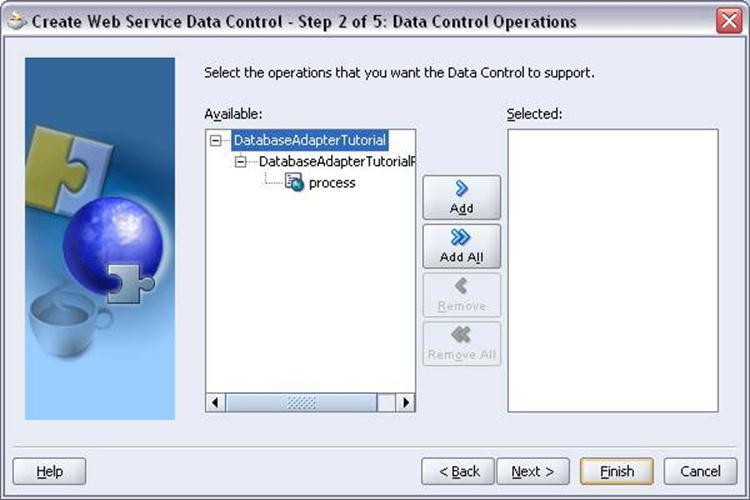

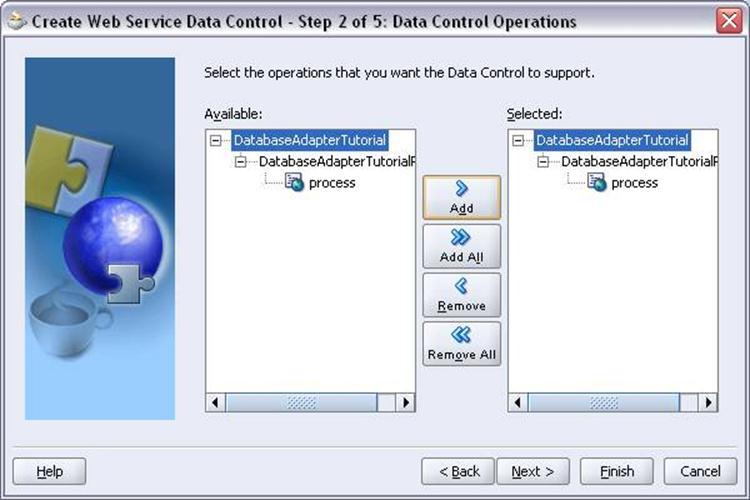

Click Add button

Click Next

Click Finish

You will return to jDeveloper automatically

Save the project CTRL+S

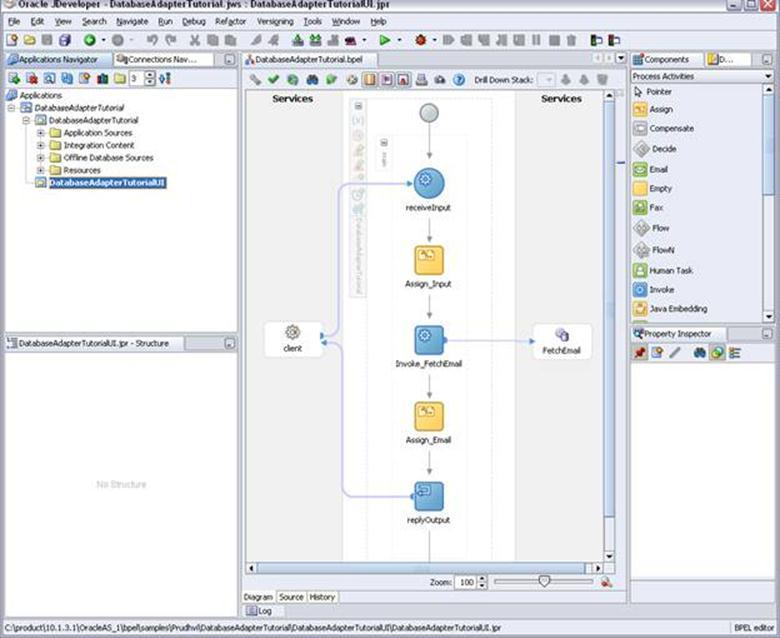

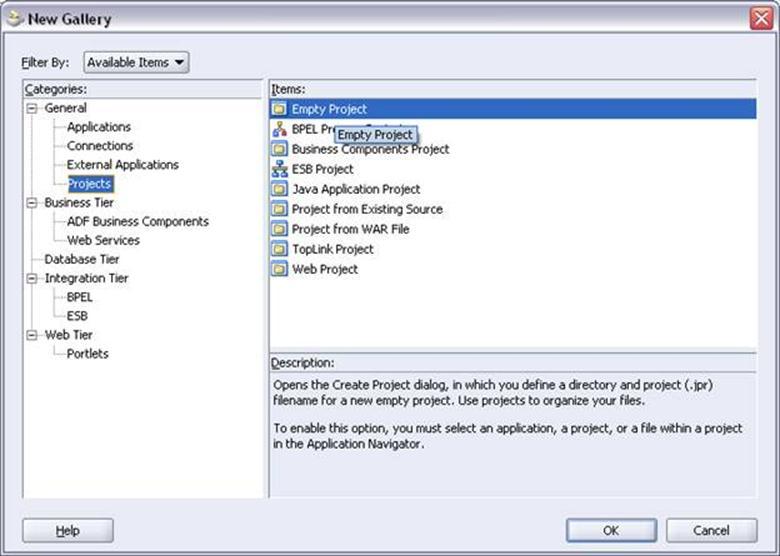

Create New Project for

Click OK

Click OK

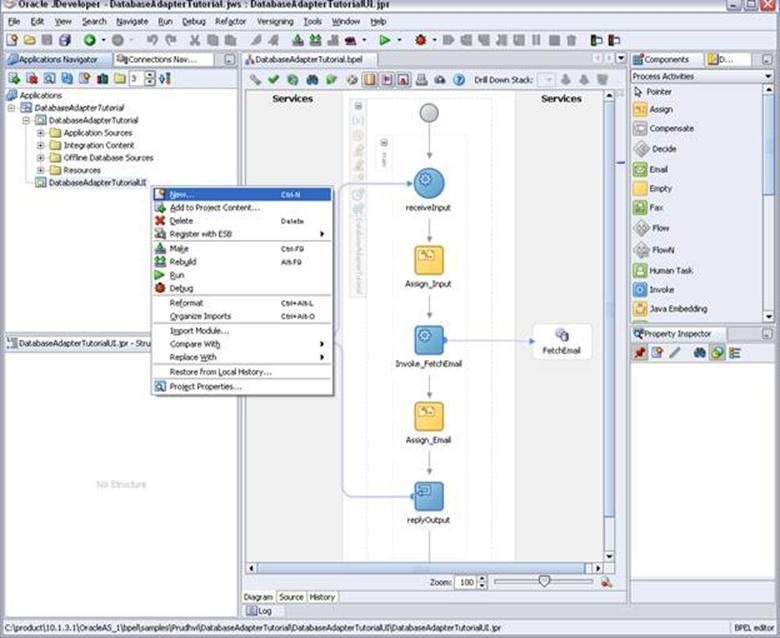

Right click and select New

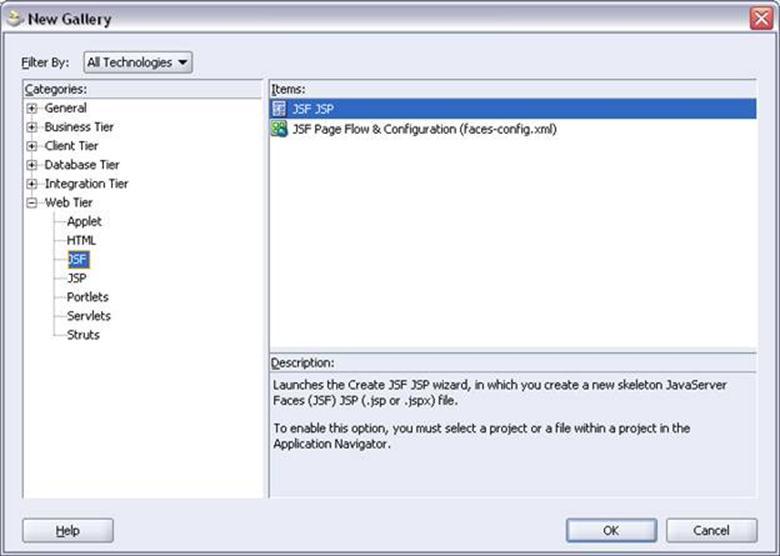

Expand Web Tier and select JSF

Select JSF JSP Item and click ok

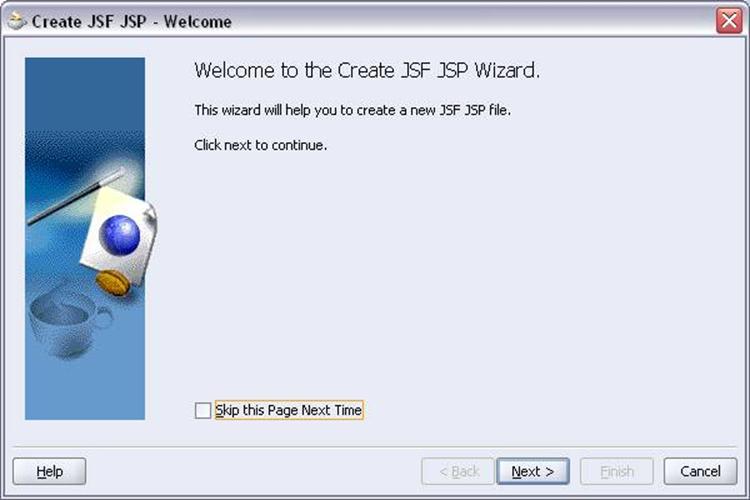

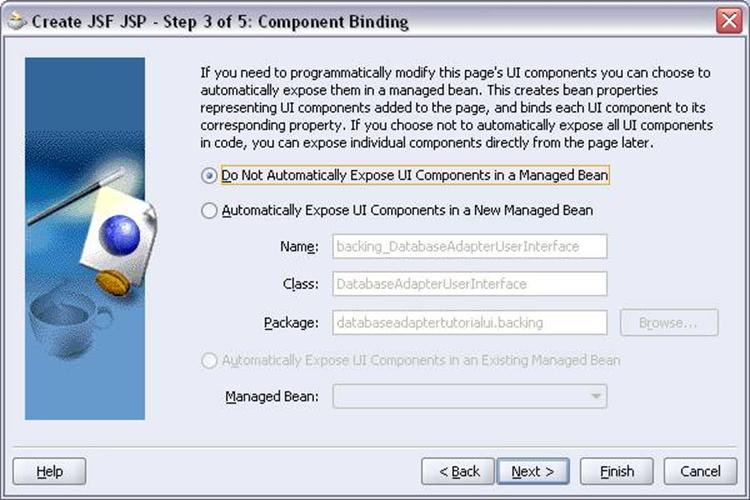

Next

Next

Next

Next

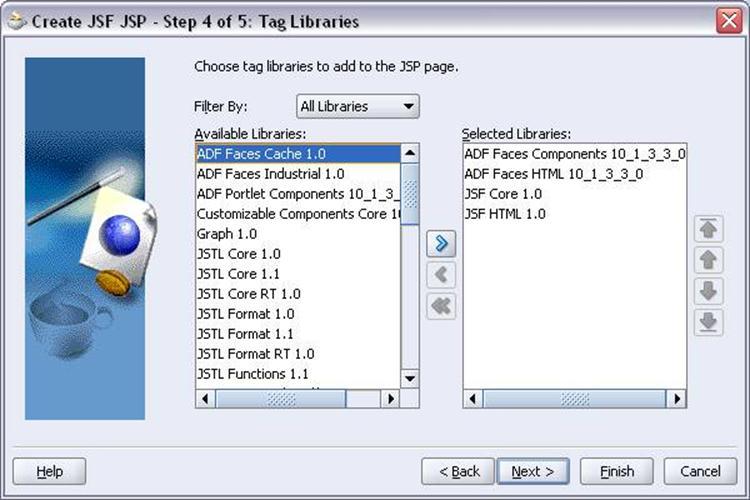

Add the libraries as shown above and click Next

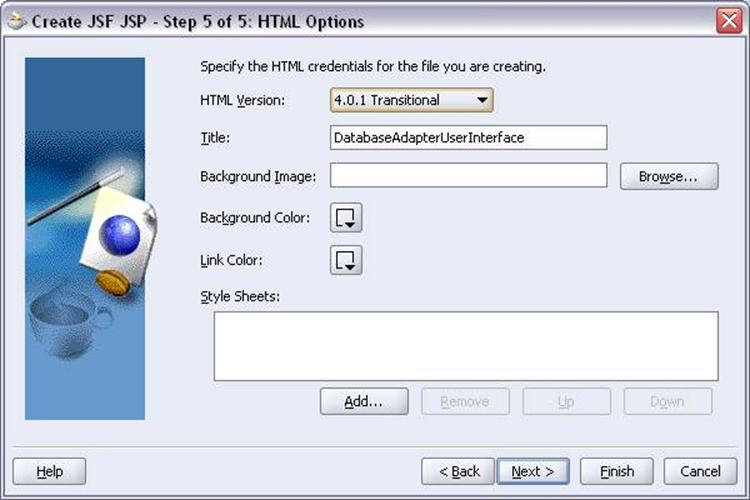

Next

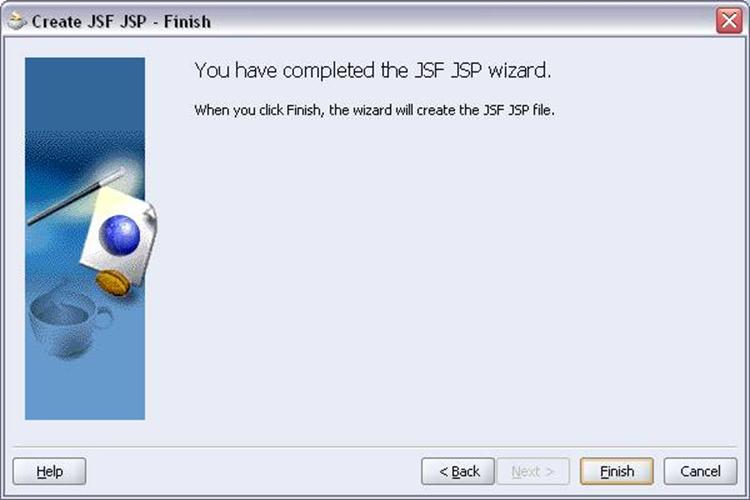

Finish

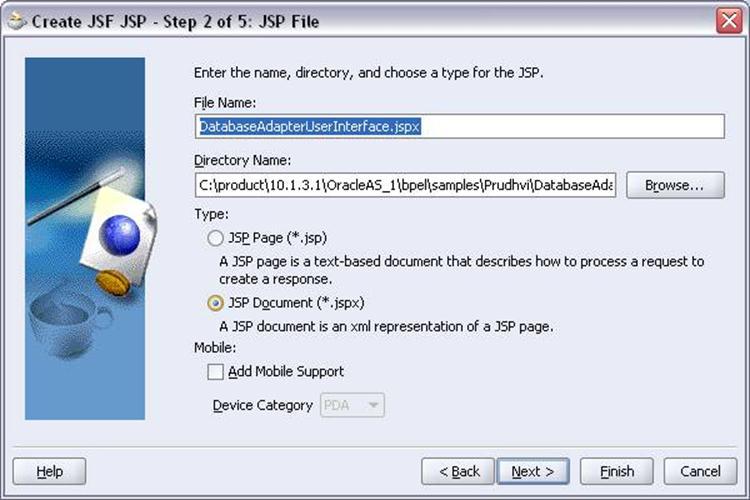

You will return to jDeveloper and DatabaseAdapterUserInterface.jspx page will be opened automatically

Save project CTRL + S

From the component Palette select ADF Faces Core

Drag and drop Panel Page component to the opened .jspx page

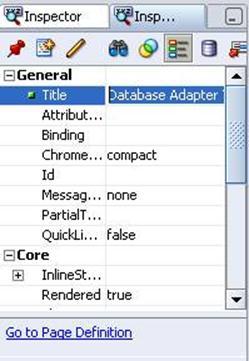

Click on Title 1 and change the Title in the

Click Tab and Enter to see the changes in jDeveloper

Drag Panel Border component below the line under Database Adapter Tutorial title

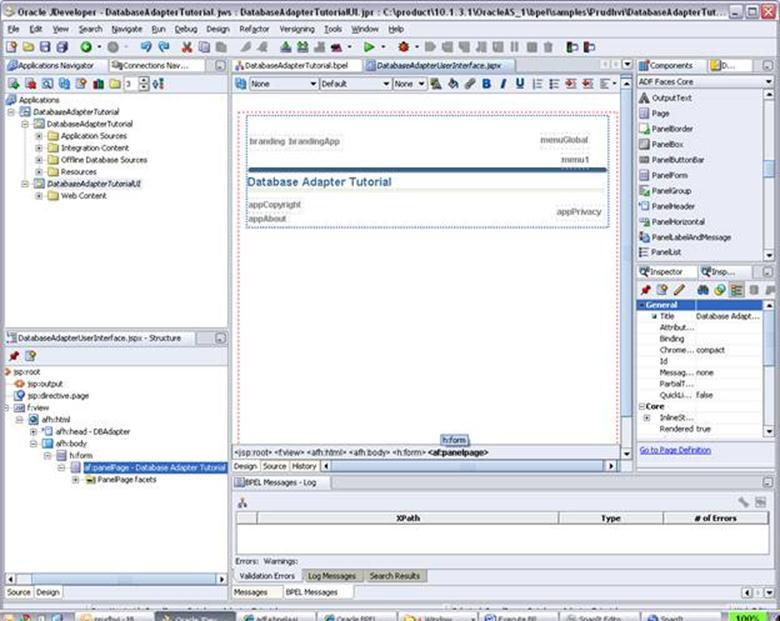

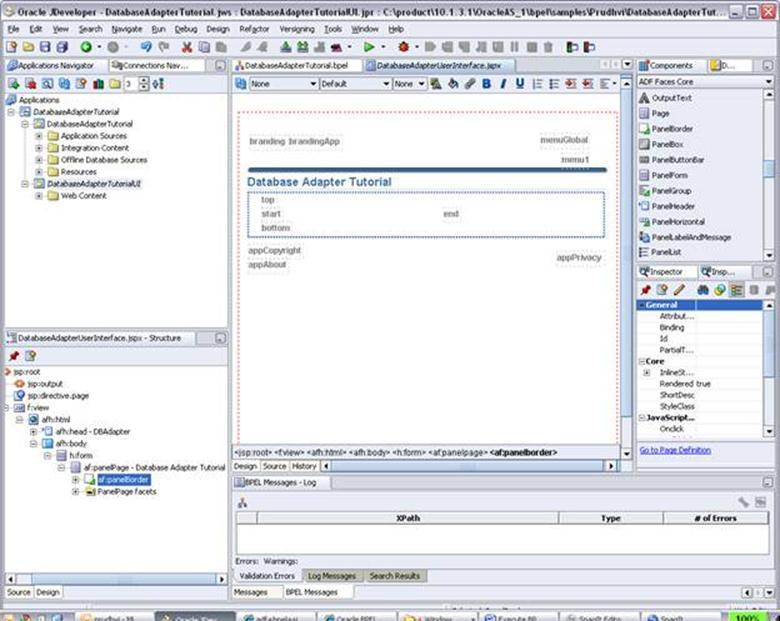

The page should look like below screen

Select Data control Palette side by the Component palette

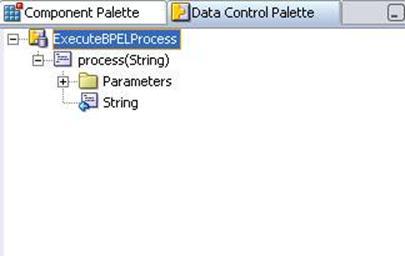

Select the ExecuteBPELProcess and expand it

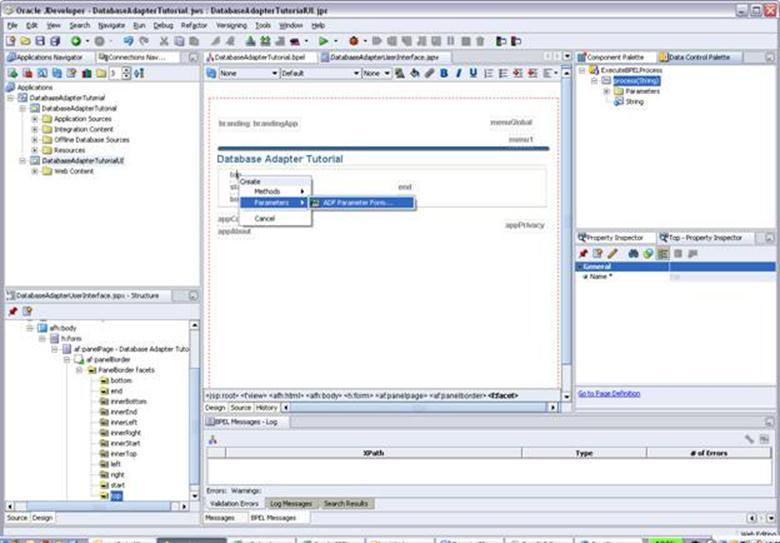

Drag and drop Process(String) on to the top link

Change the display label to ‘Enter ID’ and click OK

The page will look like below screen

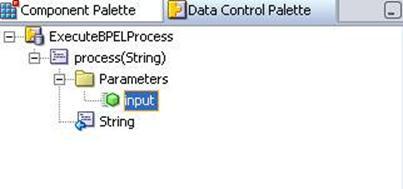

In Data Component Palette expand Parameters and

Drag and drop the String to the bottom

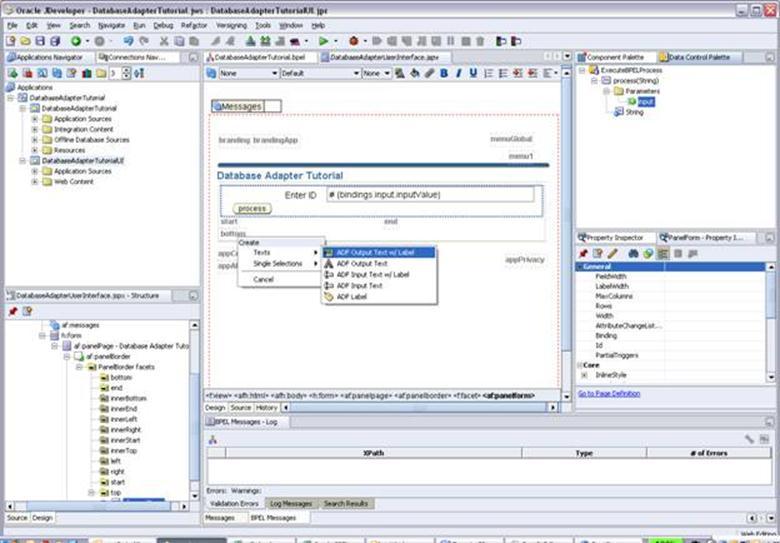

Select ADF Output Text with Label

Change the Text to Email

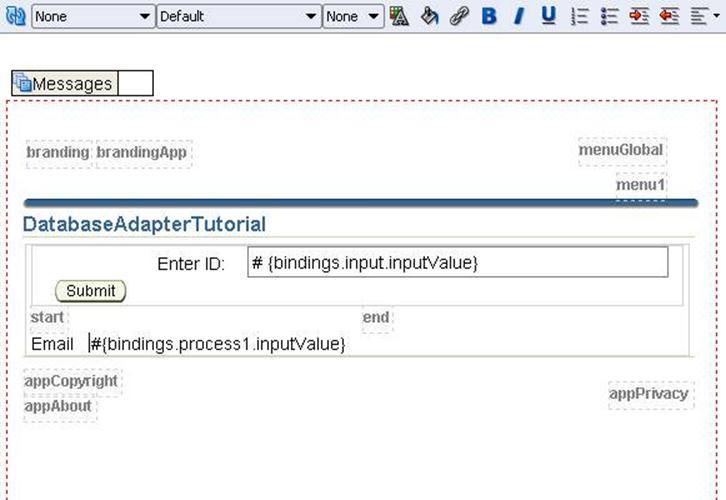

Jdeveloper Middle portion will look like this

Save project CTRL + S

Drag Object Separator component on to Start link

Save project

Run the JSF Page

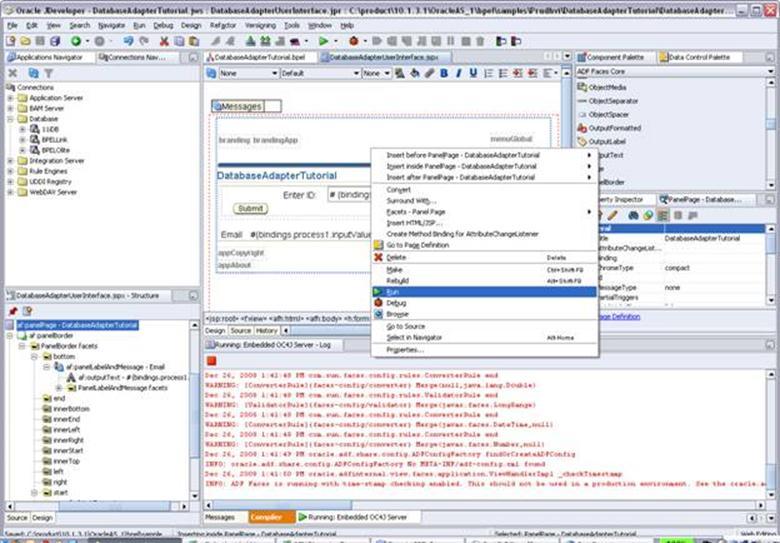

Right click on the page in jedeveloper and click Run

.jspx page will open up in your default browser

Enter the ID and click Submit
